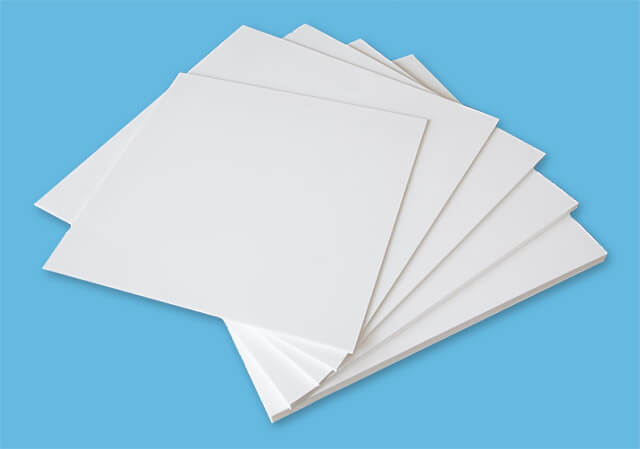

GS Gold | PTFE Sheet

Features

Low temperature and high temperature resistance (-180˚C ~ +260˚C)
Corrosion resistance, weather resistance
High lubricity, no adhesion
Non-toxic
Non-flamable
Acid and alkali resistance
(Except molten alkali metals)
Antioxidant

Categories

Molded sheet
Produced by compression molding processing, molding, sintering, cooling of suspension PTFE resin into pure sheets and filled sheets (color, copper powder, glass fiber, graphite, carbon fiber, black, carbon powder, polyphenylene, anti- static plates, etc)

Skived rolled sheet/skived tape
Produced by skiving granular resin

Skived sheet
Produced by cutting and flatting skived rolled sheet

Sodium processing sheet
Produced by sodium treatment of sheet surface according to customers size requirements. Dividing into single-sided and double-sided sodium treatment.

Applications

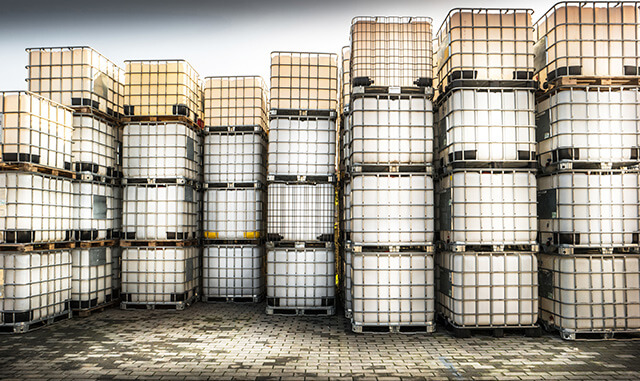

Welded chemical containers, tanks
Machinery, construction, transportation bridges sliders, rail release materials
The production of sealing materials
Filling different materials to enhance performance of the desired area according to customer requirements

Technical Details

Property	Unit	Pure PTFE Result
Tensile strength	Mpa	≥15.0
Ultimate elongation	%	150～400
Apparent density	g/cm³	2.1～2.3
Dielectric strength	KV/mm	≥10
Resistance of surface (Working voltage 500V)	Ω	3.7x10¹⁶

Specifications

Categories	Size
Categories	Length (mm)	Width (mm)	Thickness (mm)
Molded sheet	300	300	2~100
	400	400	2~100
	450	450	2~100
	500	500	2~100
	600	600	2~100
	800	800	2~100
	1000	1000	2~100
	1200	1200	2~100
	1500	1500	2~50
	1800	1800	2~50
	1800	1800	2~50
	2000	1000	2~50
	2000	2000	2~50
Skived rolled sheet/skived tape		10~2700	0.02~10
Skived sheet		10~2700	0.02~10
Sodium processing sheet			0.2~100
