GS Gold | PTFE Rod

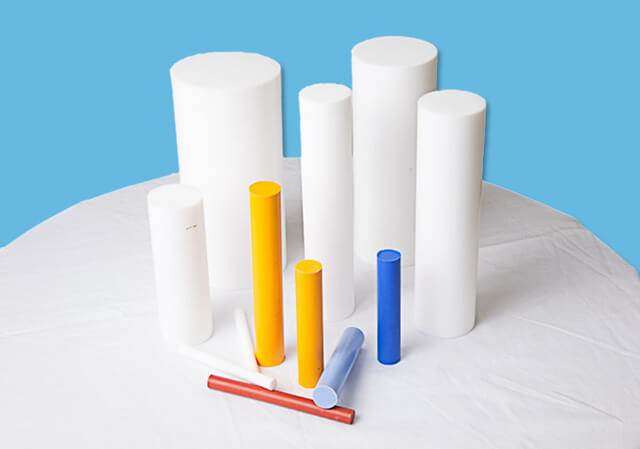

PTFE (TEFLON) Rod

Features

Low temperature and high temperature resistance (-180˚C ~ +260˚C)
Corrosion resistance, weather resistance
High lubricity, no adhesion
Non-toxic
Non-flamable
Acid and alkali resistance
(Except molten alkali metals)
Antioxidant

Categories

Molded sheet
Produced by compression molding into pure rod and filled rod.(color,copper powder, glass fiber, graphite, carbon fiber, carbon powder, polyphenylene, etc)

Extruded rod
Produced by plunger extrusion processing of dispersion polymerization of PTFE resins.

Pasted rod
Produced by paste push processing of suspension PTFE resins into pure rods, graphite rods and glass fiber rods.

Applications

Battery electrode, electric products
Lubricate bearings, piston rings, oil seals, seals and other machinery
Filling different materials to enhance performance of the desired area according to requirements of customers

Technical Details

Property	Unit	Pure PTFE Result
Apparent density	g/cm³	2.10～2.30
Tensile strength	Mpa	≥15
Ultimate elongation	%	≥150
Note: When rod diameter is more than 16mm, only apparent density need be tested again.

Specifications

Categories	Size
Categories	Diameter(mm)	Length(mm)
Molded rod	6~500	100~1000
Extruded rod	1~4	1000~5000
Pasted rod	5~150	1000 or 2000
Note: The length could be processed according to requirement of customers.
